Equip with Powerful 4-Cores Chip

This is a top class 4-core chip, 14nm, 2T computing power.It can start up quickly in 5 seconds under the video recording of the 4K front camera and 1080P rear camera.The whole operating system is very smooth without delay.The boot speed of other models with the same configuration on the market is more than 10 seconds, because they use a single core chip.

With Dual Lens

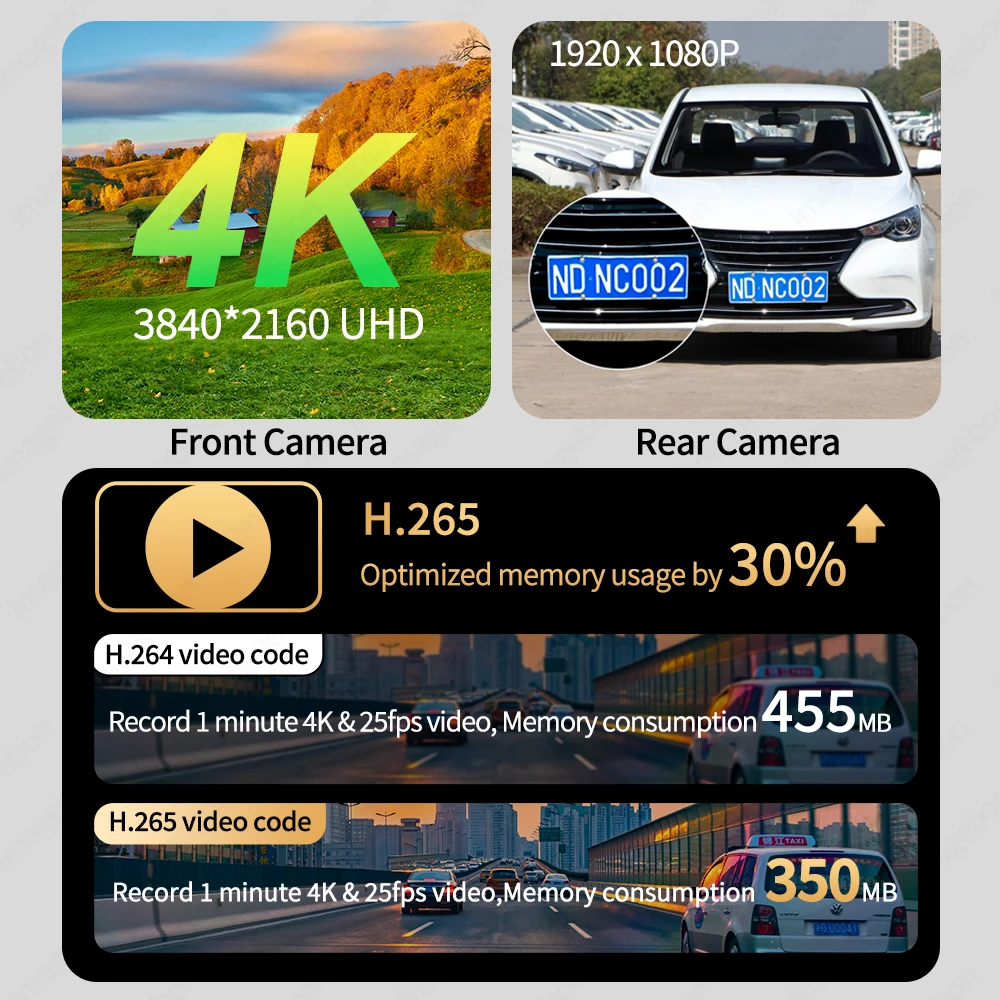

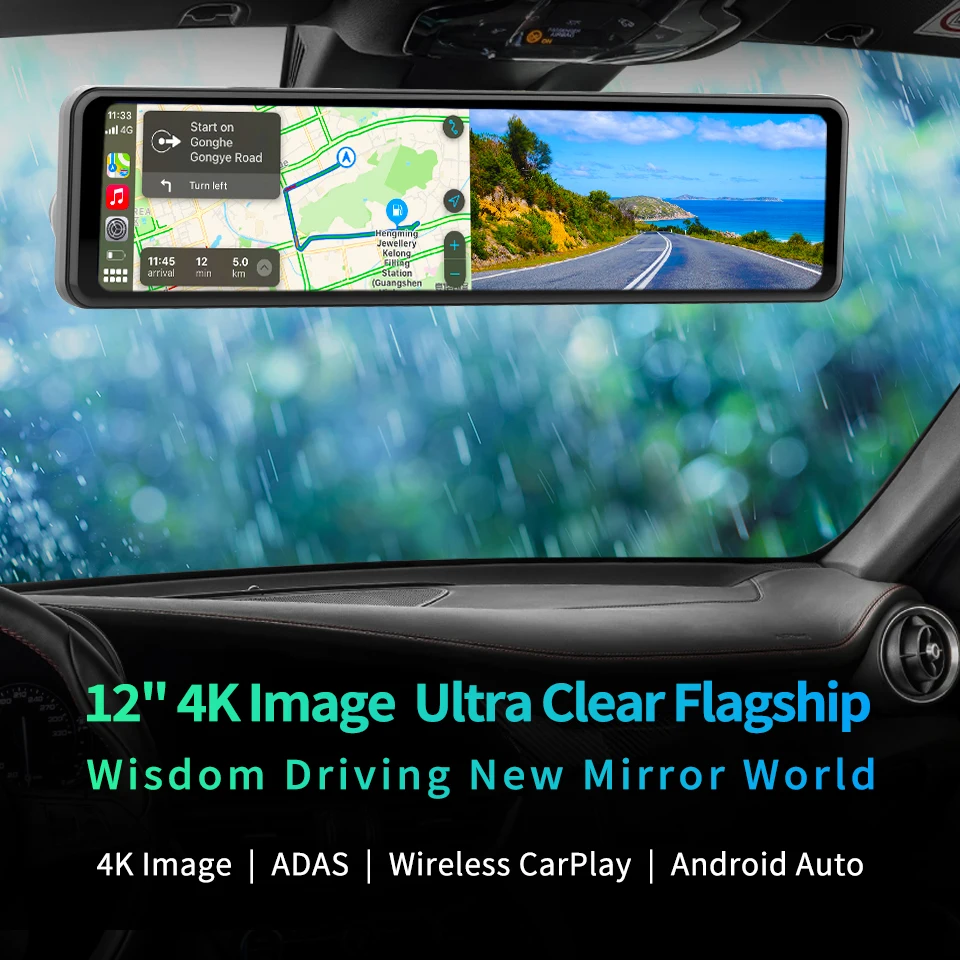

Front Camera 4K 2160P + Rear Camera 1080P.11.26″ IPS Touch Screen,135° Wide Angle.Up to 8 million pixels, to achieve true 3840*2160P 4K UHD resolution, Which can help us capture license plates, road signs, and other critical details on the road (If you don’t choose rear camera,it is single len)

Adopt Upgraded H.265 Video Code

Compared with H.264 video code,H.265 has better image quality and use less storage space(Reduce by more than 30%)Wireless CarPlay & Android Auto

The product connects wireless CarPlay and android auto via Bluetooth,Then it will automatically switch to WiFi for data transmission.then you can use GPS navigation,make a call,receive and dispatch messages,listen to music etc..(support android 10 or above mobile phone,not include huawei mobile phone)
Bluetooth Transmitter + AUX Output + FM Transmitter + Native Audio

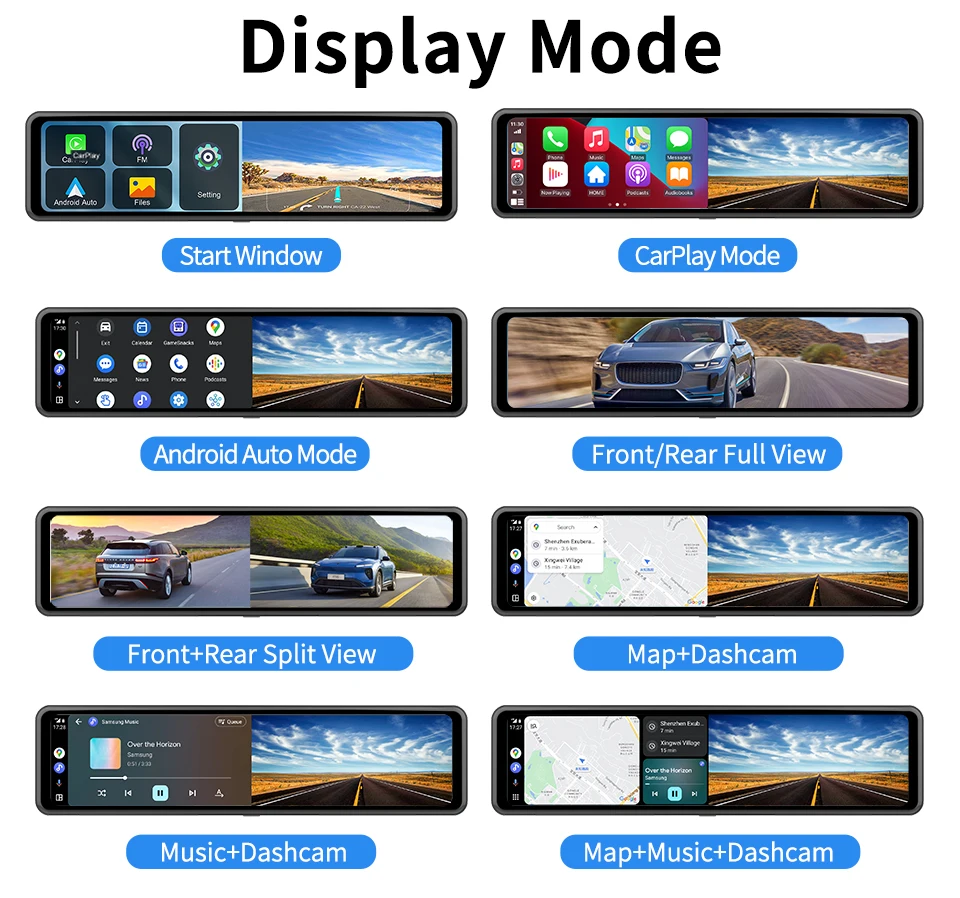

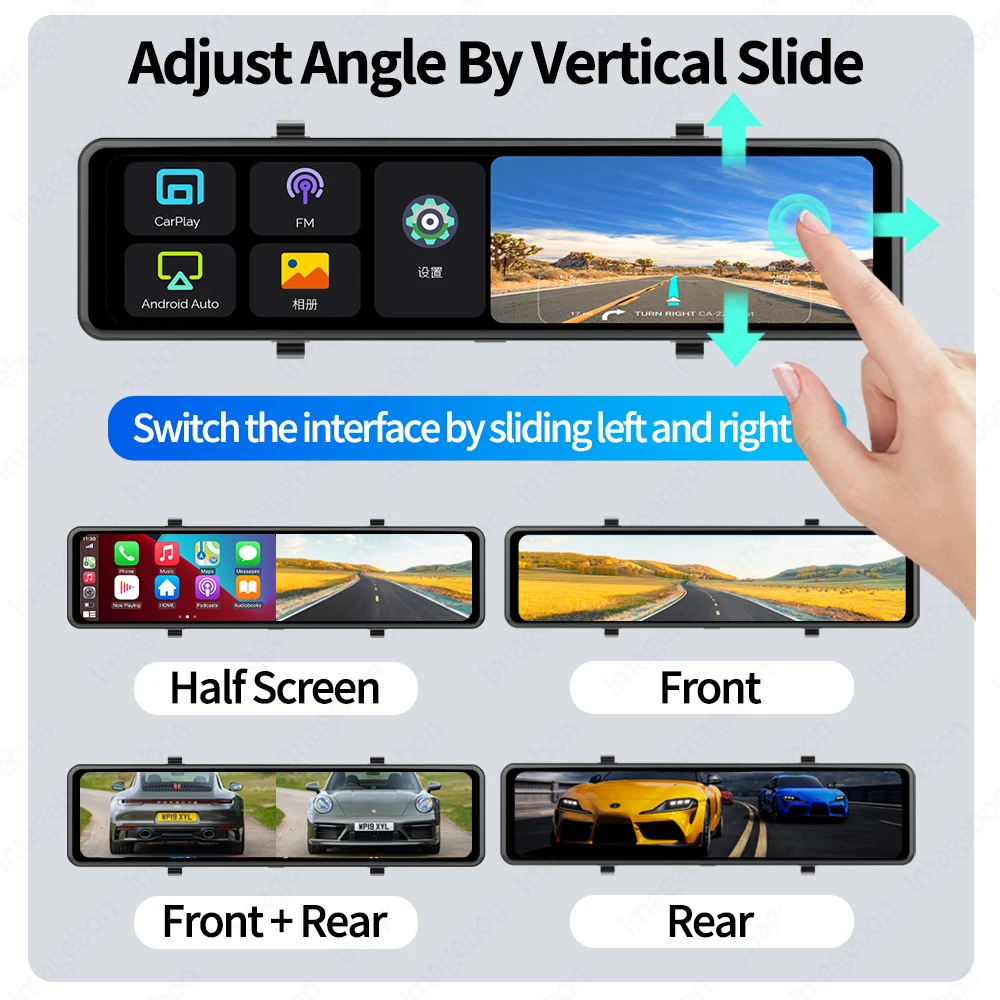

Display Mode

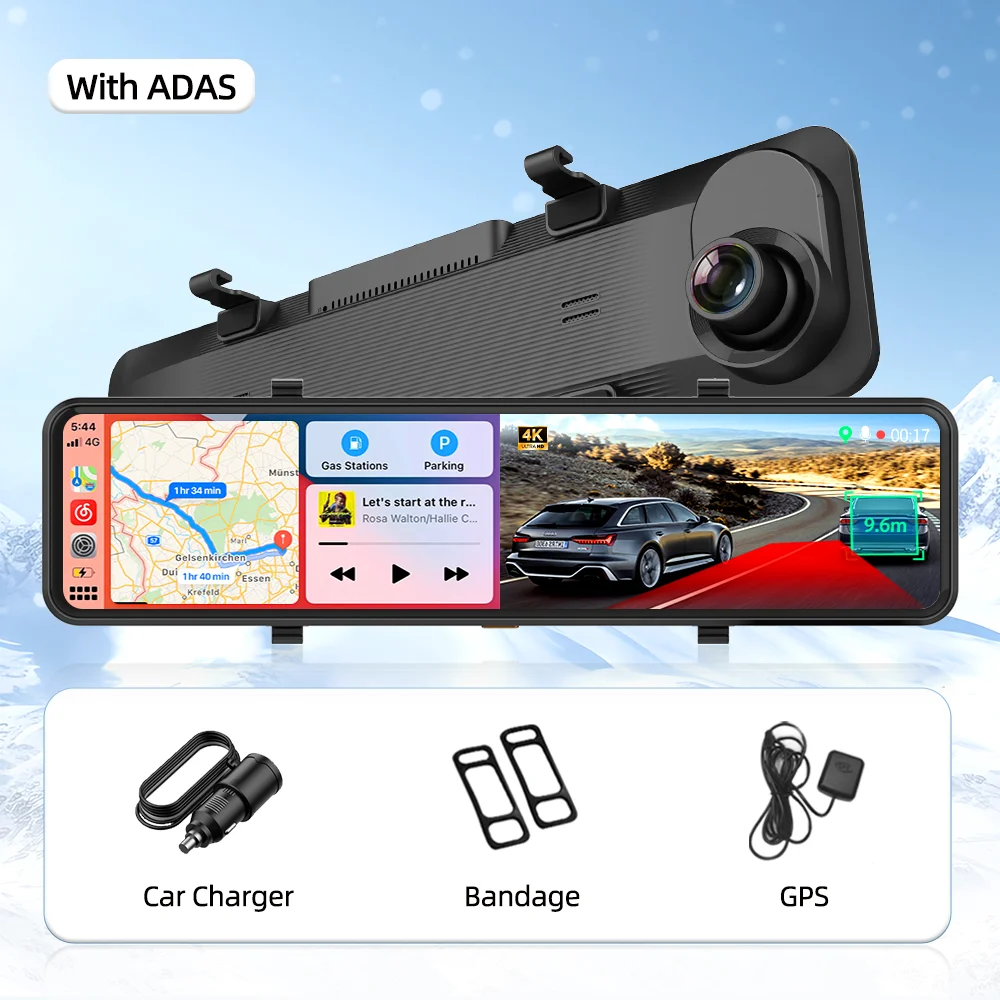

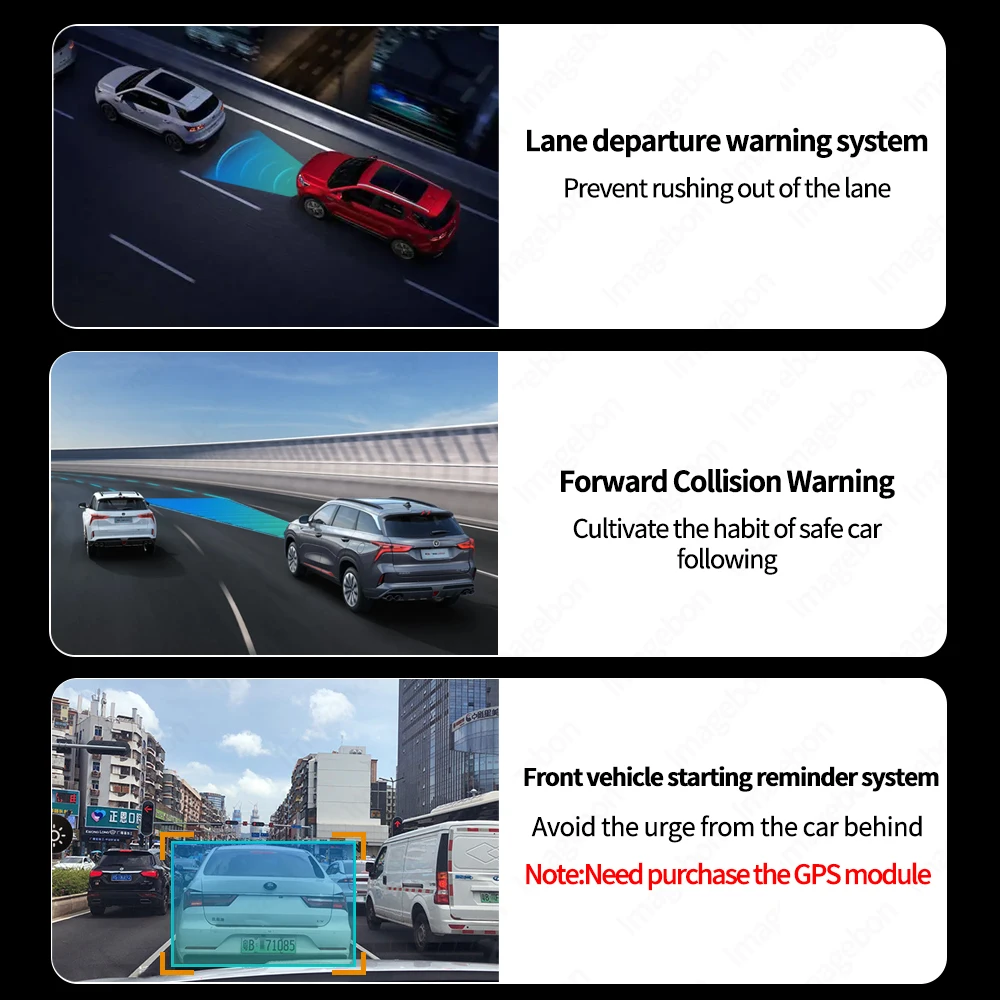

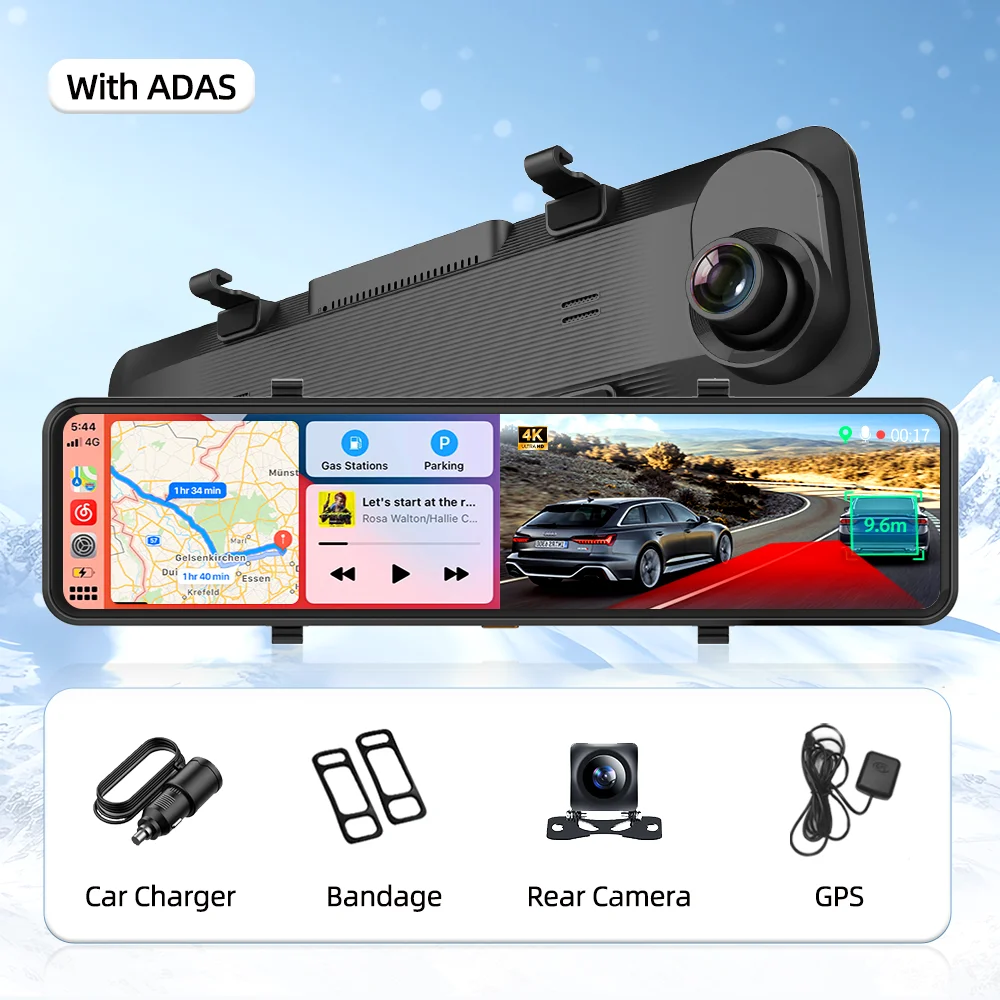

Advanced Driver Assistance Systems

Detect your surroundings and help you avoid accidents by real-time voice alert.

(1)With Lane departure warning system ADAS function trigger conditions：
If you are using a GPS active antenna, the system will only trigger a lane departure warning if your driving speed is above 50KM/h. If you are not using a GPS active antenna, there is no speed requirement, and the system will trigger a warning as long as a lane departure occurs.
(2)With Forward Collision Warning System

Support Voice Assistant:

In Carplay/Android Auto mode,supports Siri/Google voice control.Free your hands and enjoy more safer driving experience.Built in lithium super capacitor

More durable, safer and more reliable than lithium battery.With 5GHz High-speed WiFi

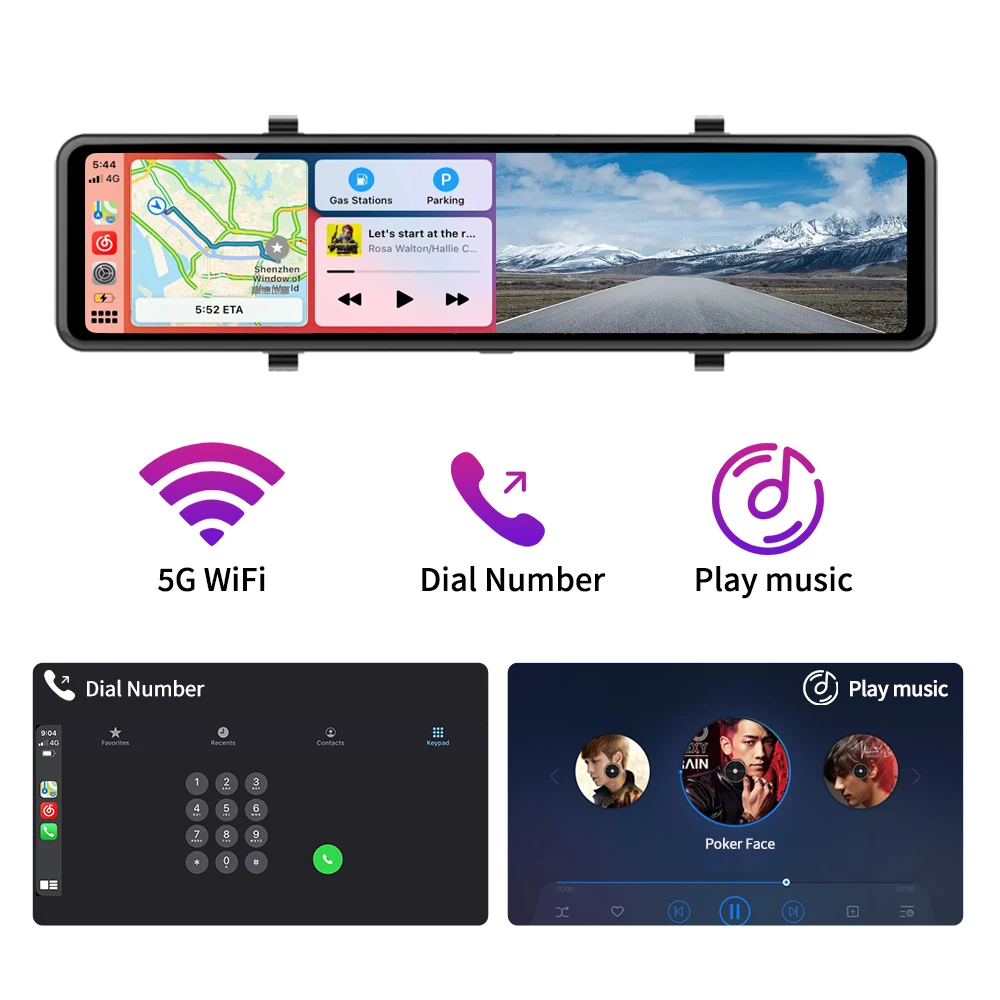

Equipped with built-in WiFi, it can be connected to a mobile phone, you can preview real-time images to view historical records and quickly download pictures. With the latest 5G Hz technology, the video transmission speed will be faster and smoother than the traditional 2.4G Hz.
GPS Navigation

In CarPlay mode, the DVR can realize the GPS navigation function, and you can directly wake up the voice assistant and say your destination, it will help you plan your route, which is more convenient and safe for your drive.(Note: The DVR itself does not have GPS navigation software)

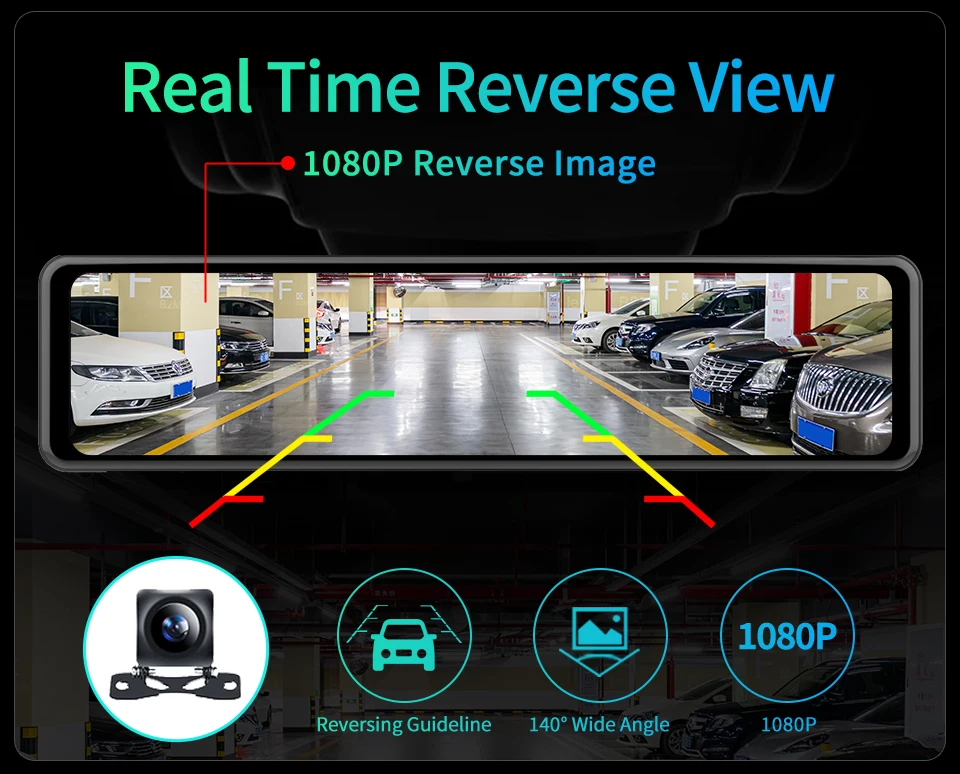

Real Time Reverse View

Support 1080P full screen reverse image and with guide line.When reversing, the system will automatically turn on the high-definition reversing camera at the rear of the car and clearly display the state of the rear of the car on the reverse IPS screen, so that you can accurately grasp the road conditions at the rear. The preview angle can be adjusted by sliding the left side of the screen to control the position of the guide line.

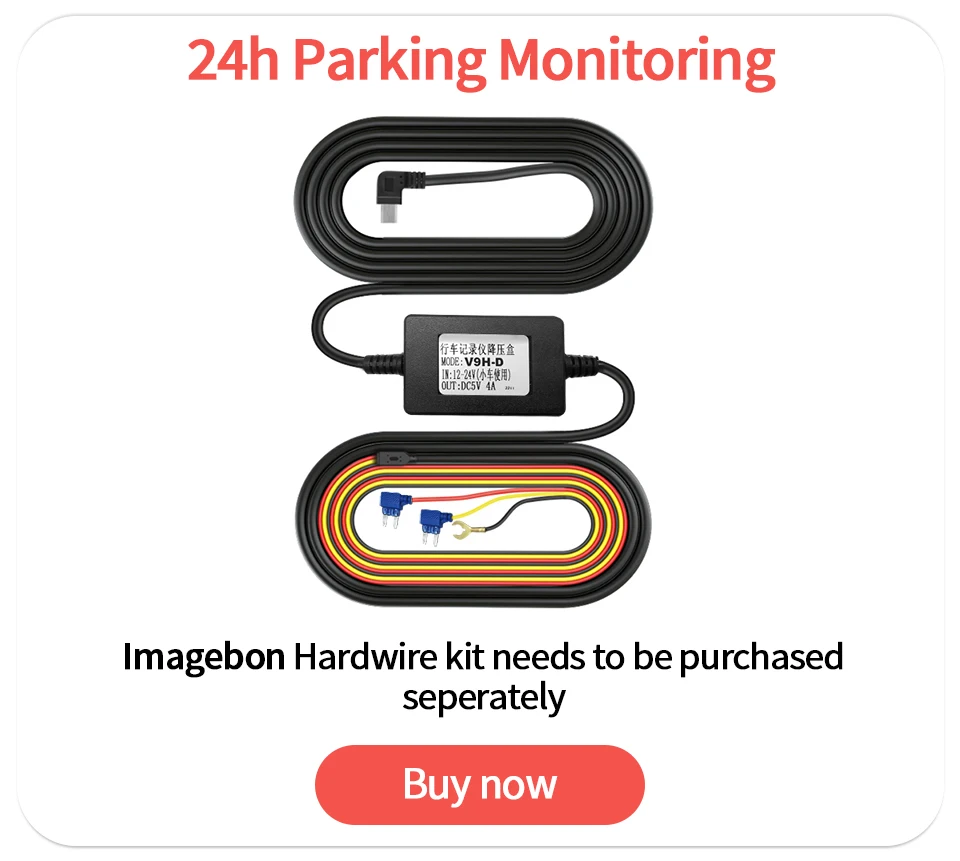

24h Parking Monitoring

Allows you to connect dash cam to a vehicle battery source, get constant power supply from the battery directly, so your car DVR will keep work even when ignition is off. (Additional purchase of buck line is required)

Loop Recording

The recording files will loop and overwrite the oldest videos when the TF/SD card is full to achieve continuous recording. You can set the video file length from 1,2,5 min by settings. Max Support 256 GB TF card.

3-Axis G-Sensor

3-Axis G-Sensor senses sudden acceleration, braking and collisions in order to automatically capture and protect critical footage surrounding an accident.
Through this function the important files won’t be removed by loop recording.

Night Vision:

The front camera supports night vision,It can help you see the surrounding road conditions clearly in the dark

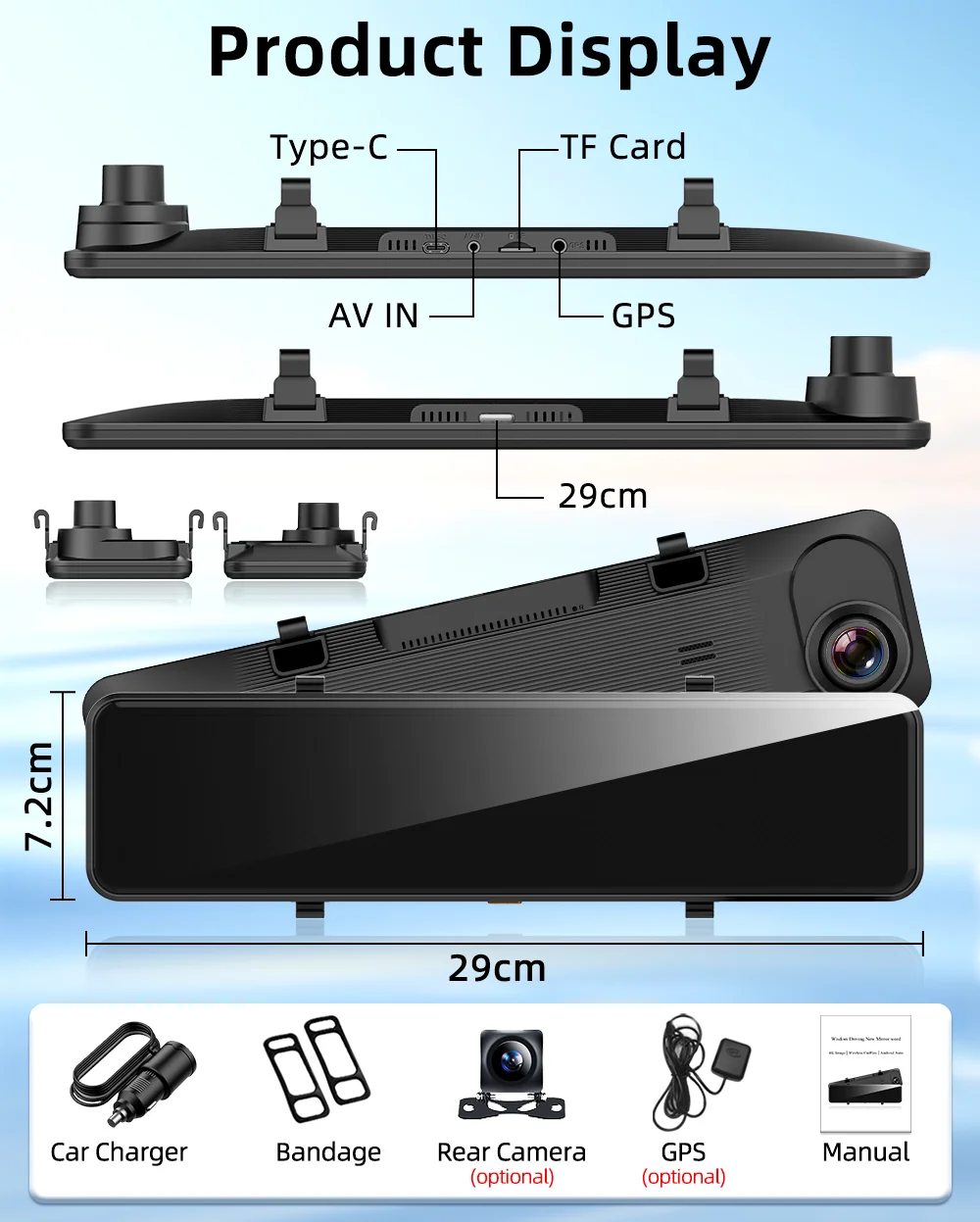

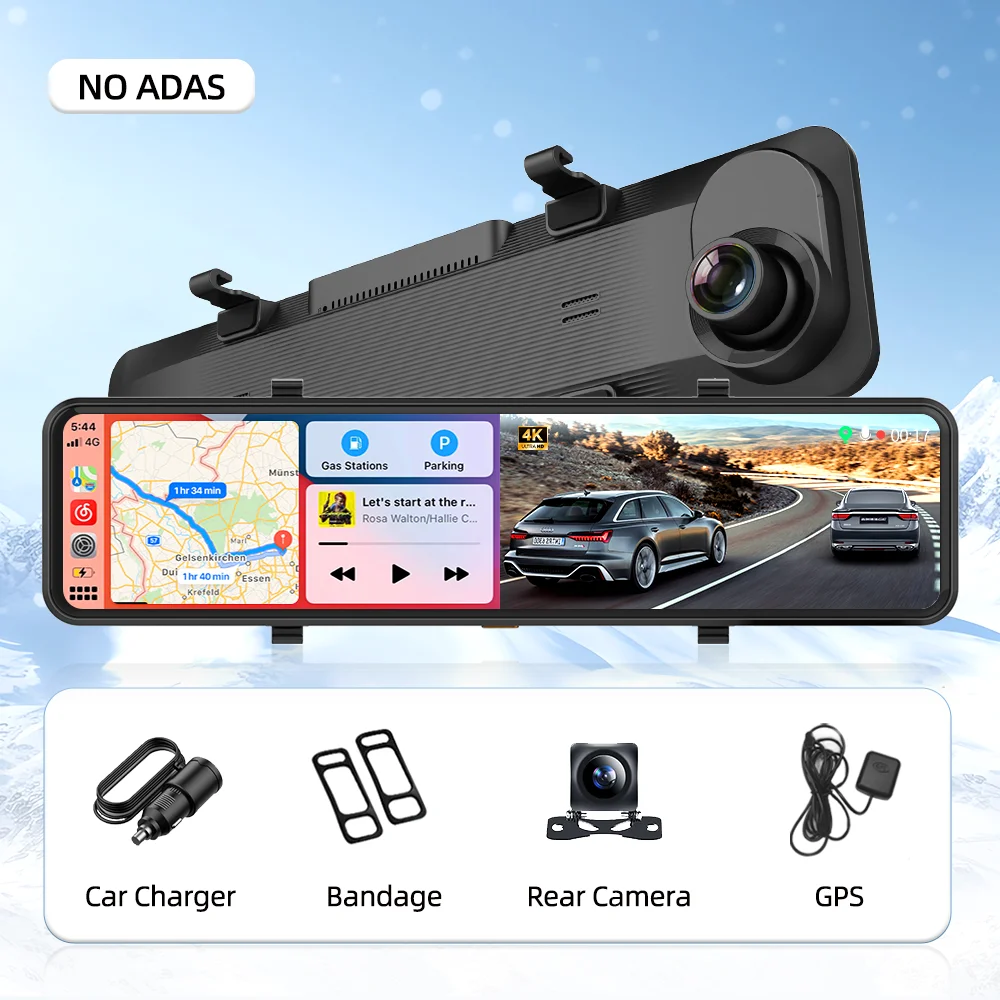

Packing list:

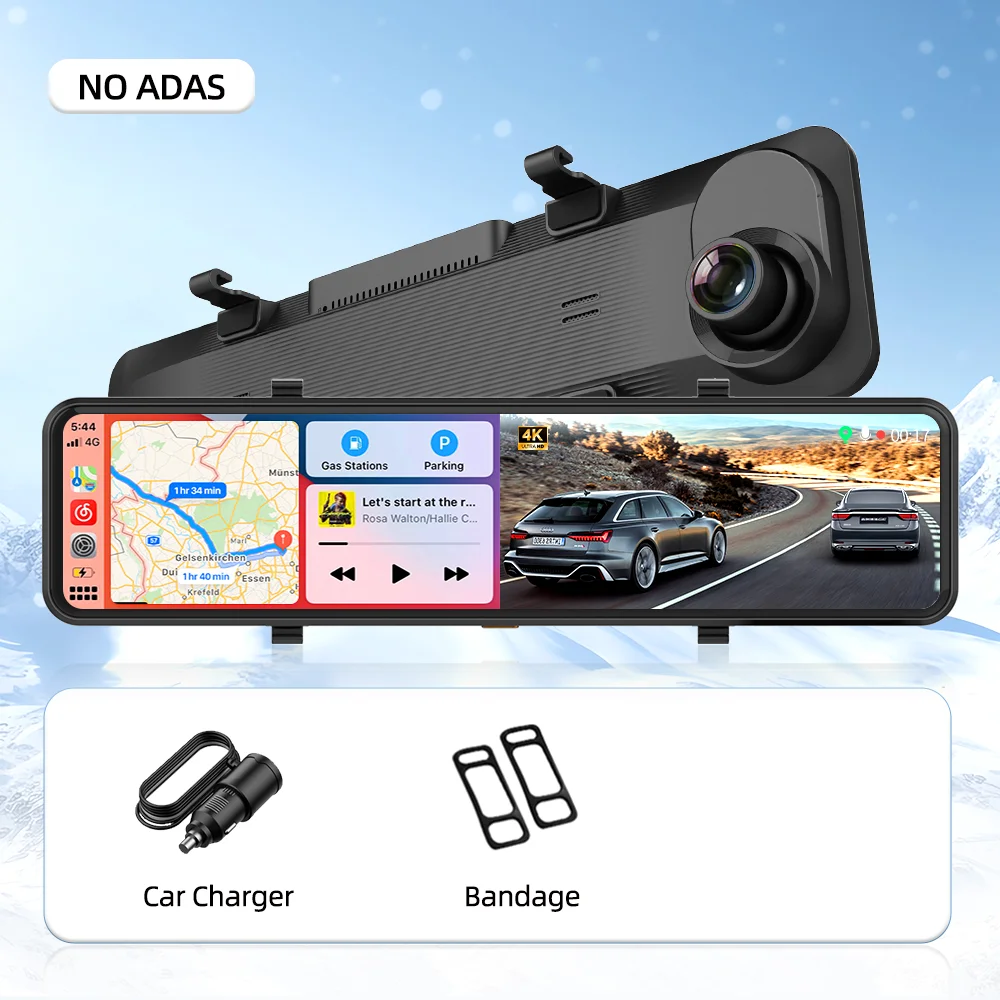

1 x 11.26″ Car DVR

1 x Car Charger

1 x AUX Cable

1 x 3M GPS Antenna(Optional,depend on your choice)

1 x 6M Rearview Camera(Optional,depend on your choice)

1 x Manual

FAQ:

1: Is this device suitable for my car?

This is a 12″ universal car radio, just fix it on the center console.

2: How to connect wireless Carplay/Android auto?

First pair the mobile phone with Bluetooth, and then connect to the WIFI signal. After both are connected, Carplay/Android Auto will automatically jump to the corresponding interface.

3: Why is there no sound from the device?

The AUX cable is inserted and the switch the AUX of audio.

4: Is it possible to transmit audio to the car’s speakers via Bluetooth?

No, only via AUX cable or FM channel.

5: How to sync sound via FM?

Turn on the FM Transmitter on the device, adjust the channel of the car radio to a blank station, and set the radio on the device to the same frequency as the radio on the car, the setting is complete.

6: How to sync sound via AUX cable?

Find the AUX cable, then connect one end of the cable to the “audio” port on the slide right of the device, connect the other end to the AUX-IN port on the car, and enter the AUX playback interface of the car radio to synchronize the sound – Set up.

7: Why doesn’t the screen light up?

(1). Check whether the power supply is plugged in properly(connect with type-c port next to AV port).One end of the cigarette lighter is installed in place,and the other end will be connected to the lowermost DC 12V power supply port on the left side of the device.

(2). After confirming that the power is turned on, if the screen is still not on, there is a reset button on the back of the device, press and hold for 3 seconds.

8: What should I do if the picture of rear camera is shaking ?

(1).Please Check whether the rear camera line is plugged in AV port properly(Note:should connect the rear camera at first,then power on machine)

(2).Then restart the device

9:Can I use the rear camera of the original car/other brand?

No, only the rear camera of Imagebon is supported, the camera of the original car/other brands is not suitable for the device
